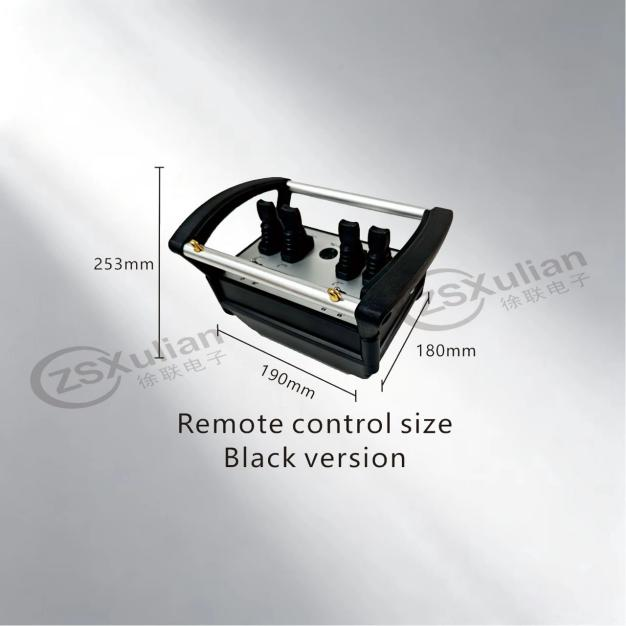

Black Version Remote Controller

Description

General Basic Functions

1. Control Channels: The number of control channels can be added or customized as needed. One unit can be equipped with multiple joystick and button channels running independently to realize single-action and combined linked operations.

2. Control Mode: Combined proportional joystick control and function buttons. Speed adjustment knobs and self-locking toggle switches are optional; joystick stroke and operating feel can be customized.

3. Power Control: Equipped with electromagnetic clutch proportional actuators for fast torque connection and disconnection. The joystick stroke is linearly synchronized with output movements. Power output cuts off immediately upon power failure to avoid misoperation.

4. Wireless Frequency Band: Dedicated industrial frequency band with strong resistance to electromagnetic interference on construction sites for stable long-distance transmission. One transmitter can pair with single or multiple receivers via encrypted pairing to prevent signal crosstalk.

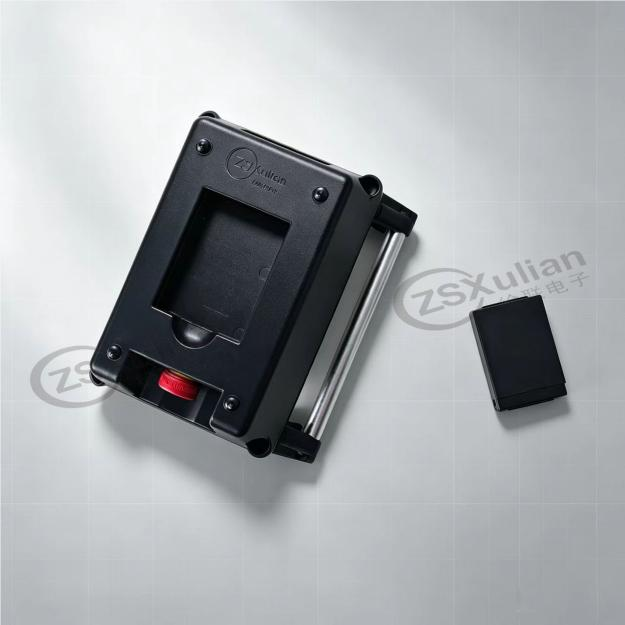

5. Power Supply Specifications: The handheld transmitter adopts a large-capacity rechargeable lithium battery for long endurance. The receiver supports multiple equipment supply voltages.

6. Safety Configurations: Mushroom-shaped emergency stop button, automatic joystick centering when released, and automatic sleep power-off after operation timeout, providing multi-layer safety protection.

7. Housing Protection: Shock-resistant and drop-proof with a thickened carrying frame, suitable for harsh construction site conditions with vibration, dust and drastic temperature changes.

8. Output Types: Optional relay digital output, proportional analog output and solenoid valve output, compatible with various hydraulic electronic control systems.

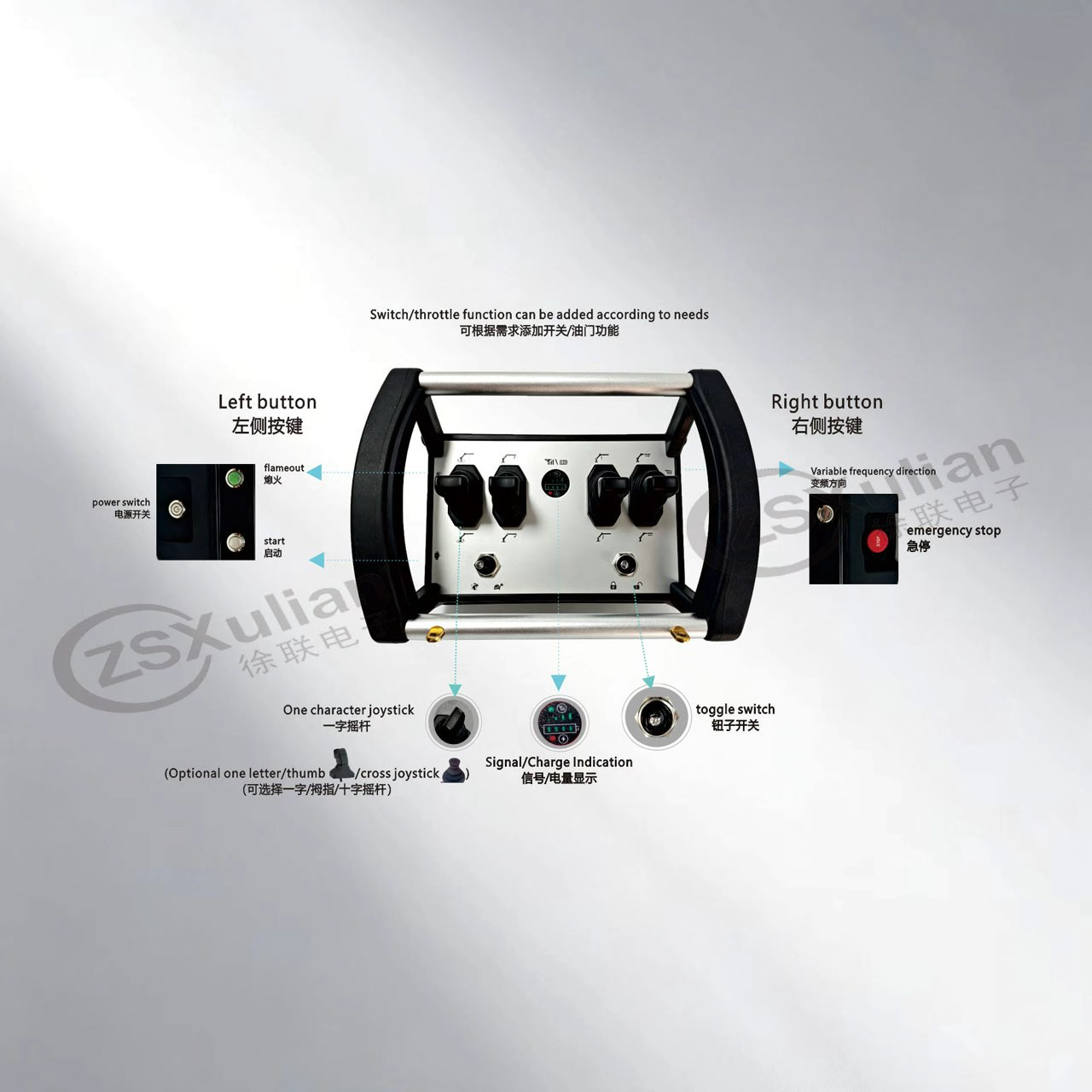

Conventional Functions / Joystick Reference Drawings:

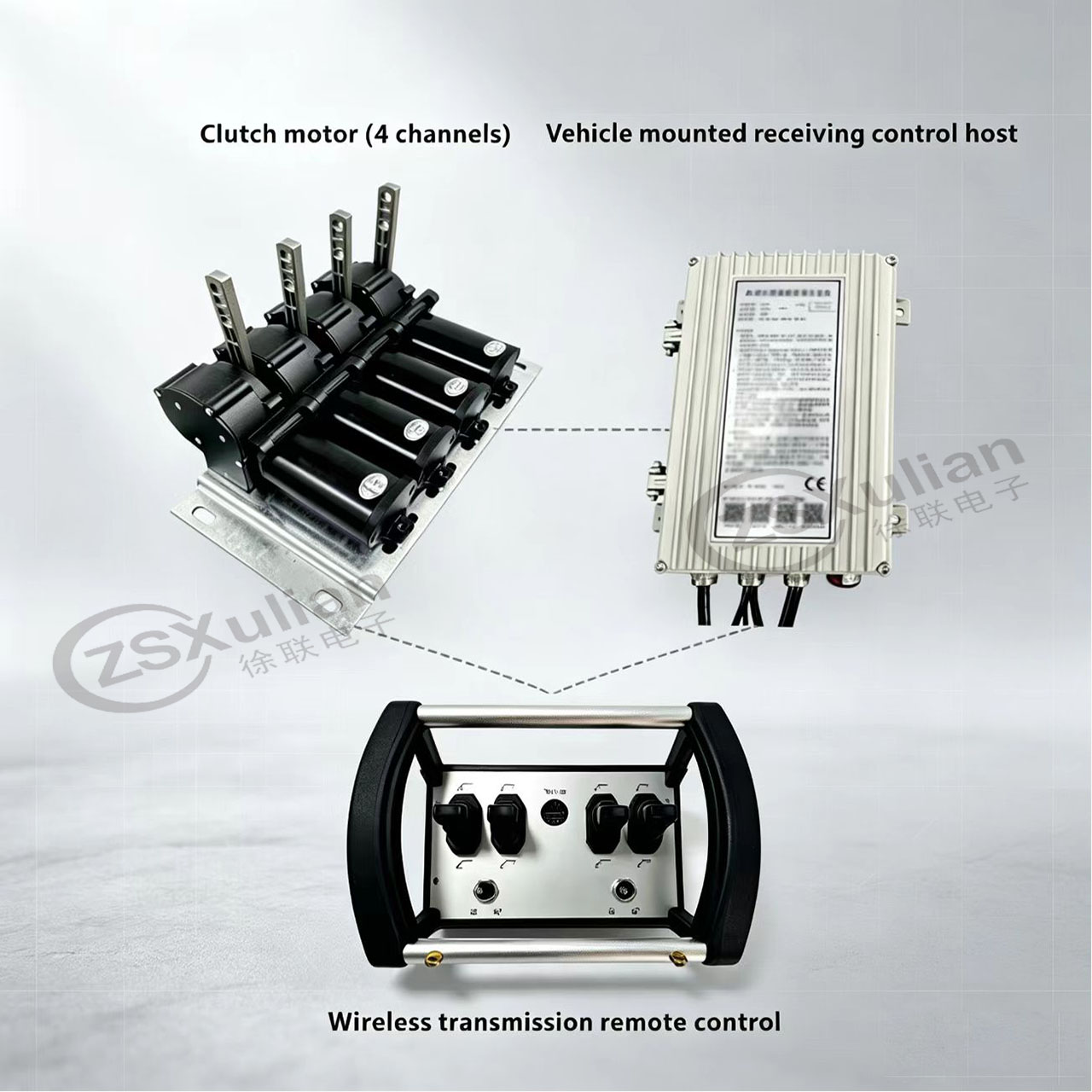

Combination of the three enables wireless remote control of construction machinery:

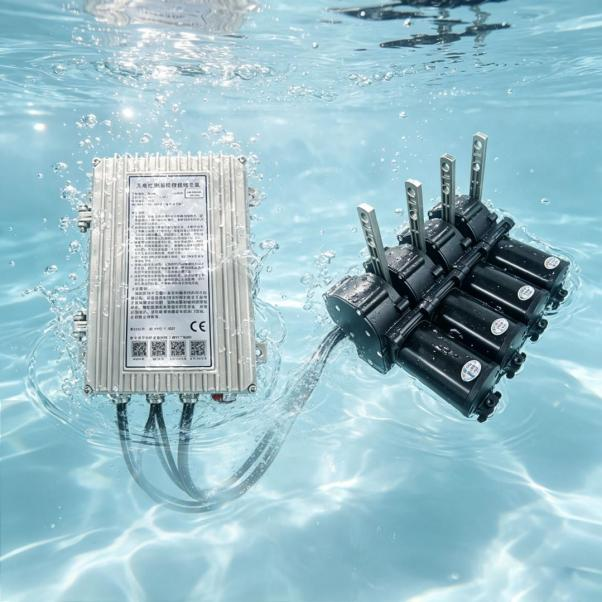

The main motor features excellent waterproof performance and can operate stably under humid and splashing water conditions. The remote control housing is made of high-strength material, which is drop-resistant and wear-resistant, suitable for rough working environments on construction sites.

This remote control device boasts powerful universal compatibility and works with most construction machinery available on the market. It matches a wide range of heavy equipment including truck cranes, truck-mounted cranes, spider cranes, wood grapples, excavators, aerial work platforms, loaders and engineering drilling rigs.

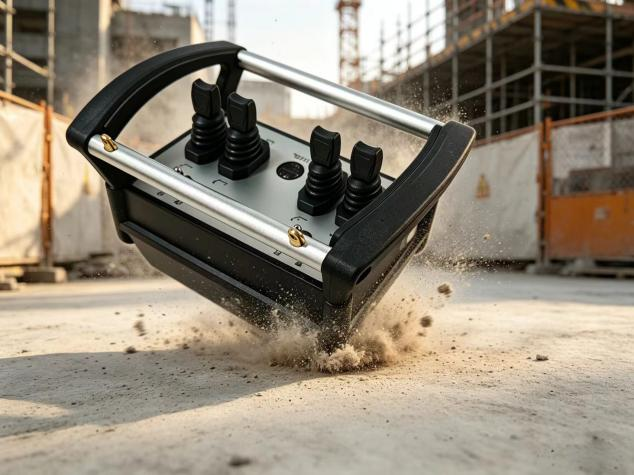

The equipment is specially calibrated for extreme site conditions such as heavy dust, intense vibration and wide temperature fluctuations. It delivers stable operation with outstanding wear resistance, enabling reliable long-term work in complex construction environments and greatly reducing equipment failure rates.

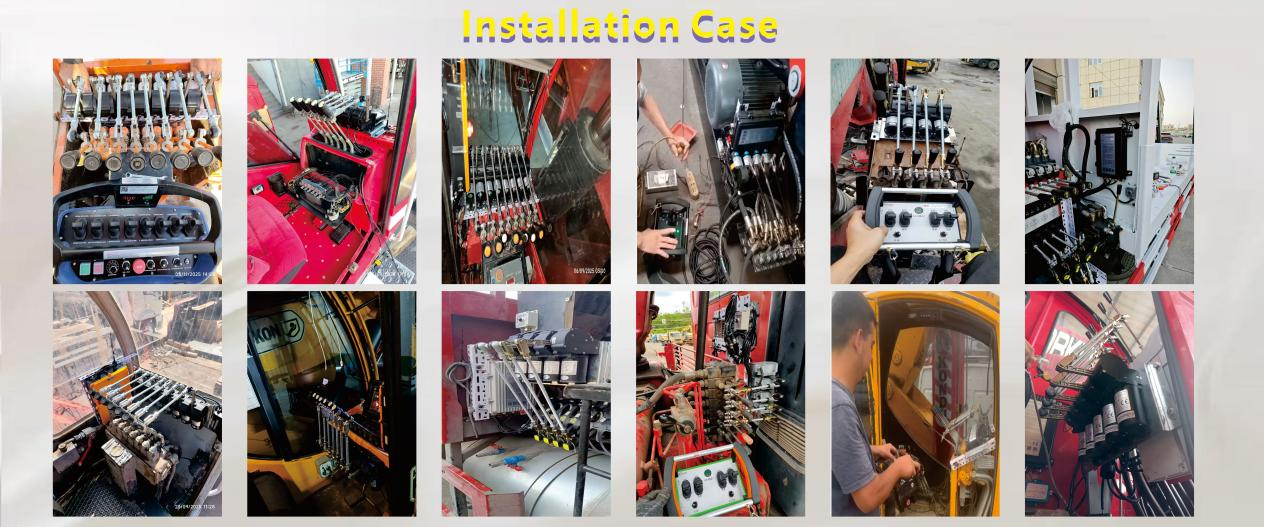

This remote control is extremely easy to install and features non-destructive retrofitting without modifying the original vehicle’s oil circuits or wiring.
After installation, the original manual operation of the machine remains fully functional. You can freely switch between wireless remote control and manual mode. Veteran operators can get started right away, with no hidden risks caused by rewiring the original equipment.
